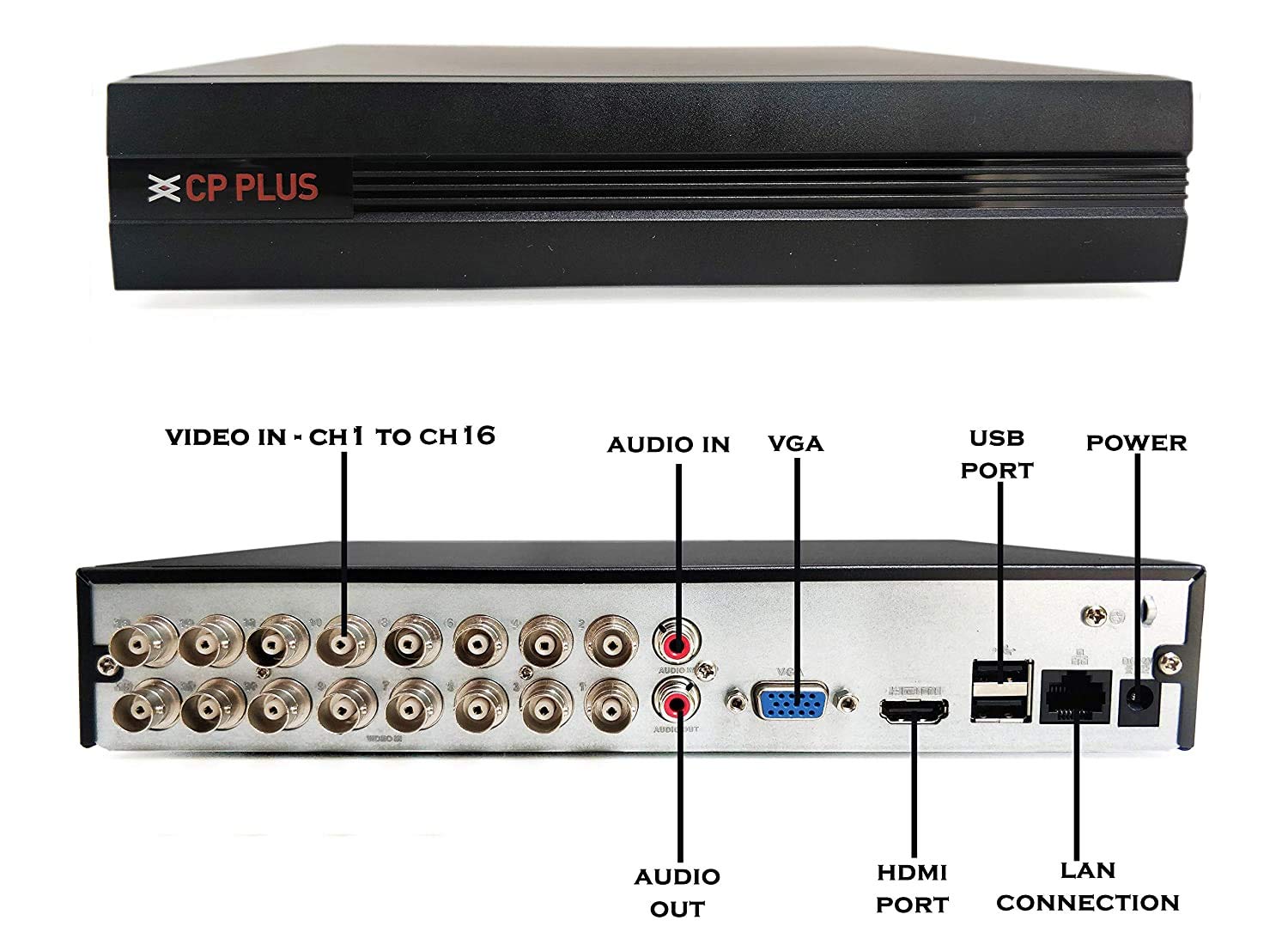

CP PLUS 16 Channel Digital Video Recorder 5 MP SUPPORTED CP-UVR-1601F1-IC
₹ 10,600
₹ 19,600
0.0
(0 Reviews)Inclusive of all taxes
SKU : CP-UVR-1601F1-IC
Product Details
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP
- Supports Full-channel AI Instastream
- Instastream/H.265 dual-stream video compression
- Up to 16 channels video stream (analog channel) SMD Plus
- Support 1 SATA HDD up to 16TB Each, 2 USB Ports
- 1 HDMI / 1 VGA Simultaneous Video Output
- Read More
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16+8 channels, each channel up to 6MP |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Compression | AI Instastream/Instastream/H.265/H.264+/H.264 |
| Video Recording | Main stream: All channel 5M-N (1 fps–10fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H D1/CIF (1 fps–25/30fps) Sub Stream: D1/CIF (1 fps–15fps) |
| Video Display Split | 1/4/8/9/16 |
| Resolution | 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF |
| Bit Rate | 32 kbps–6144 kbps per channel |
| Video Channel | 16 channel, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Input | 1 Ch., RCA (external) ; 16 Ch., BNC (coaxial) |
| Audio Output | 1 channel, RCA |
| Motion Detection | Support |
| Video Loss | Support |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 16TB Each |
| Camera Blank | Support |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time/Date, MD & Exact search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (10/100/100MB) |
| Interface Ports | 2 USB Ports (USB 2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/2A |
| Power Consumption | <12W (without HDD) |
| Working Temp | -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH |
| Dimension | 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) |
| Weight | 0.93 kg (without HDD) |
- Product Warranty
One Year Off-Site Direct manufacturing company Warranty!
Provide GST Bill to avail warranty services.
- Refund Policy
We sell only genuine product in Brand New Condition (sealed pack). There is no Refund, only warranty is available.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP
- Supports Full-channel AI Instastream
- Instastream/H.265 dual-stream video compression
- Up to 16 channels video stream (analog channel) SMD Plus
- Support 1 SATA HDD up to 16TB Each, 2 USB Ports
- 1 HDMI / 1 VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
